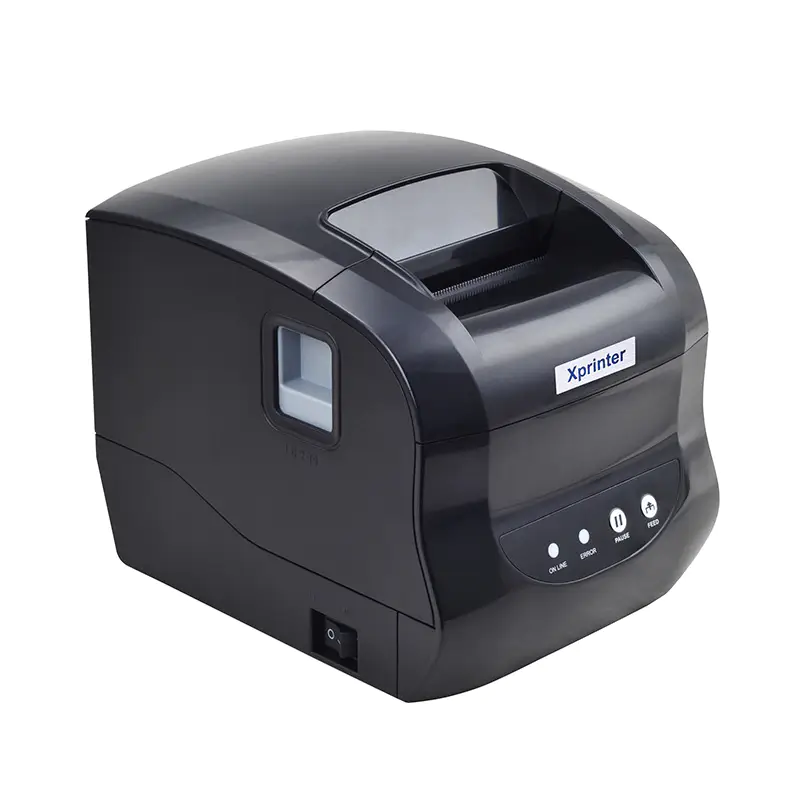

XP-365B 3 Inch Label Printer

The Xprinter XP-365B is a compact and versatile 3-inch direct thermal label printer designed for efficient barcode and receipt printing in retail, logistics, and hospitality environments. With a high-resolution 203 DPI and printing speeds up to 127 mm/s, it ensures clear, rapid outputs without the need for ink or ribbons. Its user-friendly clamshell design simplifies media loading, while adjustable sensors enhance label detection accuracy. Connectivity options include USB, LAN, WiFi, and Bluetooth, making it compatible with various devices and operating systems such as Windows, iOS, and Android. The XP-365B supports a wide range of media types, including thermal roll paper and adhesive labels up to 82 mm in diameter. Its durable build and compact size (212 x 140 x 144 mm, 0.94 kg) make it ideal for space-constrained workspaces. With a print head life of 100 km, it's engineered for high-volume tasks, ensuring reliability and longevity.
Manufacturer: Xprinter
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
0 د.ع.‏
decrease increase
Share
ModelXP-365B
Print modeLabel print mode Receipt print mode
Printing Features
Resolution203 DPI
Printing methodDirect Thermal
Max.print speed

127 mm/s

220 mm/s

Max.print width

76 mm

Media
Media type

Thermal roll paper, thermal adhesive paper

Media width

20~82 mm

Media thickness

0.06 ~ 0.19 mm

Media roll diameter

Max.82 mm

Supply method

Easy Paper Loading

Performance Features
Ram

4 M

Flash4 M
Interfaces

USB / USB+Lan / USB+WIFI/ USB+Bluetooth

USB+Lan+Serial / USB+Serial+Lan+Bluetooth / USB+Serial+Lan+WIFI
Sensors

Print head temperature sensor/ Paper end/ Cover open / Gap

Print head temperature sensor/ Paper end/ Cover open
Drawer port

1 ports (Pin 2 for cashdrawer)

Fonts/Graphics/Symbologies
Character sizes

Commonly used in single-byte fonts; FONT 0 to FONT 8, K, TST24.BF2,TSS24.BF2

1D barcode

CODE128、EAN128、ITF、CODE39、CODE39C、CODE39S、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPCE、UPCE+2、UPCE+5、MSI、MSIC、PLESSEY、ITF14、EAN14

2D bar codePDF417、QRCODE、 DataMatrix
Emulaion

TSPL

ESC/POS
Physical Features
Dimension212*140*144mm (D*W*H)
Weight0.94 kg
Reliability
Print head life100 km
Software
Driver

Windows

SDK

iOS / Android/ Windows

Power supply
Input

DC 24V/2.5A

Environmental Conditions

Operation environment

5~45℃ Humidity: RH  20 ~ 80%

Storage environment

-40~55 ℃ Humidity:≤93% RH

ModelXP-365B
Print modeLabel print mode Receipt print mode
Printing Features
Resolution203 DPI
Printing methodDirect Thermal
Max.print speed

127 mm/s

220 mm/s

Max.print width

76 mm

Media
Media type

Thermal roll paper, thermal adhesive paper

Media width

20~82 mm

Media thickness

0.06 ~ 0.19 mm

Media roll diameter

Max.82 mm

Supply method

Easy Paper Loading

Performance Features
Ram

4 M

Flash4 M
Interfaces

USB / USB+Lan / USB+WIFI/ USB+Bluetooth

USB+Lan+Serial / USB+Serial+Lan+Bluetooth / USB+Serial+Lan+WIFI
Sensors

Print head temperature sensor/ Paper end/ Cover open / Gap

Print head temperature sensor/ Paper end/ Cover open
Drawer port

1 ports (Pin 2 for cashdrawer)

Fonts/Graphics/Symbologies
Character sizes

Commonly used in single-byte fonts; FONT 0 to FONT 8, K, TST24.BF2,TSS24.BF2

1D barcode

CODE128、EAN128、ITF、CODE39、CODE39C、CODE39S、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPCE、UPCE+2、UPCE+5、MSI、MSIC、PLESSEY、ITF14、EAN14

2D bar codePDF417、QRCODE、 DataMatrix
Emulaion

TSPL

ESC/POS
Physical Features
Dimension212*140*144mm (D*W*H)
Weight0.94 kg
Reliability
Print head life100 km
Software
Driver

Windows

SDK

iOS / Android/ Windows

Power supply
Input

DC 24V/2.5A

Environmental Conditions

Operation environment

5~45℃ Humidity: RH  20 ~ 80%

Storage environment

-40~55 ℃ Humidity:≤93% RH
