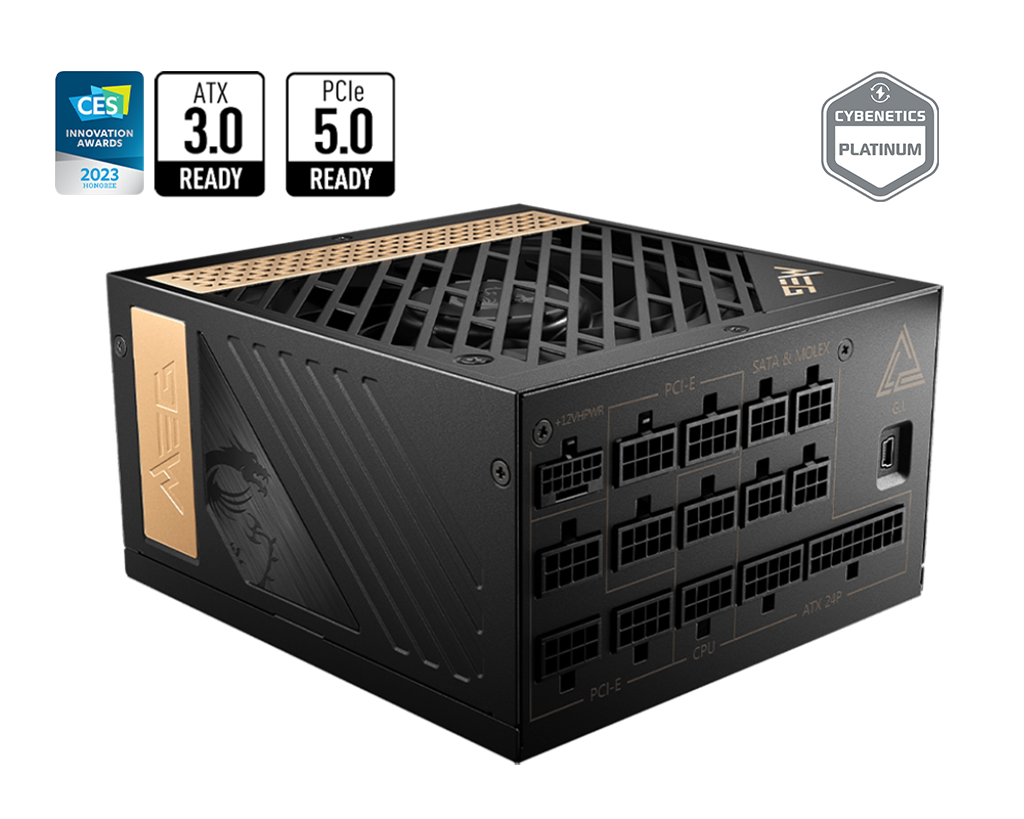

It has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion. The mysterious triangle is a symbolic icon of MEG's infinite power, with the triangle's slope further extending the three pillars of MEG's core characteristics: legendary, loyalty, and luxurious. The MEG series is revealed as a legend that represents the ultimate elegance in gaming. With the determination of transcending current gaming products, the flagship models push the limits of what an extreme gaming series can be.
| SPECIFICATIONS |
| Efficiency Rating | 80 PLUS Platinum (up to 92%) |
| Modular | Yes (full modular) |
| Fan Size | 120 mm |
| Fan Bearing | Hydro Dynamic Bearing |
| Dimensions (DxWxH) | 160 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240~ |
| Power Watt | 1300W |
| Power Excursion | 2600W (*up to 200% of the PSU's rated power for 100μs) |
| Input Frequency Range | 50~60 Hz |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |
| ATX (24 pin) | 1 |
| EPS (8 pin) | 1 |
| EPS (4+4 pin) | 1 |
| PCI-E 5.0 (16 pin) | 1 (600W) |
| PCI-E (6+2 pin) | 8 |
| SATA (15 pin) | 16 |
| PERIPHERAL (4 pin) | 4 |
| FDD (4 pin) | 1 |
