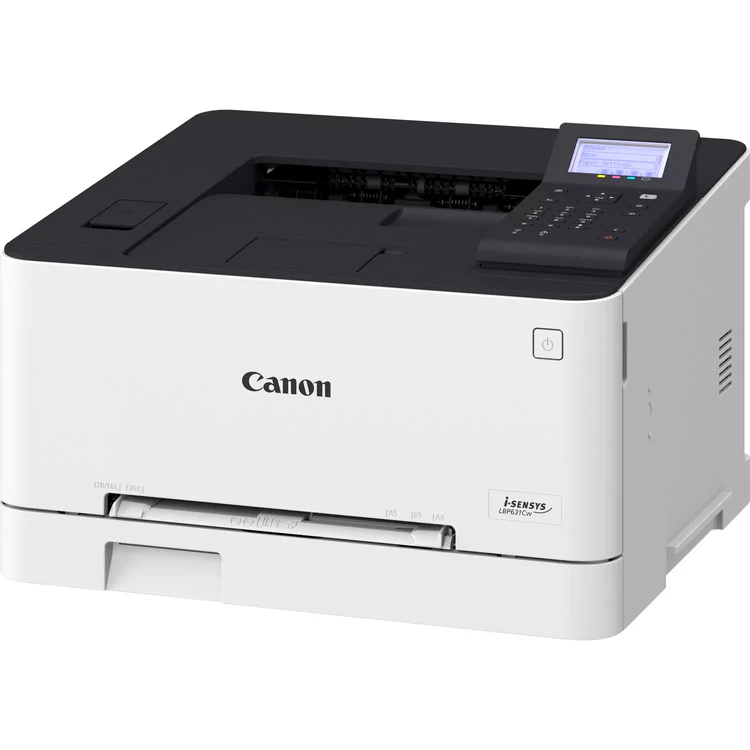

Canon i-SENSYS LBP631Cw

General Specifications

• Machine Type
  Colour laser single function
• Available Functions
  Print

Print Specifications

• Print Speed
  Single sided: Up to 18 ppm (A4)
                     Up to 38 ppm (A5-Landscape)
• Printing Method
  Colour laser beam printing
• Print Resolution
  Up to 1200 x 1200 dpi
• Warm-up Time
  Print ready message shown:
  Approx. 13 seconds or less from power on
• First-Print-Out Time
  Colour approx.: 10.5 seconds or less
  Mono approx.: 10.4 seconds or less
• Printer Languages
  UFRII
• Print Margins
  5 mm-top, bottom, left and right
• Advanced Printing Features
  Secure Print
  Print from USB memory key (JPEG/TIFF/PDF)
  iOS: AirPrint, Canon PRINT Business app
  Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

Media Handling

• Paper Input (Standard)
  250-sheet cassette
  1-sheet manual feed slot
• Maximum Paper Input Capacity
  Up to 251 sheets
• Paper Output
  100-sheet
• Media Types
  Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Label, Post card, Envelope
• Media Sizes
  Cassette:
  A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelop (COM10, DL, C5, Monarch), Custom sizes: Min. 76.2 x 127 mm Max. 216.0 x 355.6 mm.

  Multi-purpose tray:
  A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch), Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.
• Media Weights
  Cassette: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
  Multi-purpose tray: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)

Interface & Software

• Interface Type
  USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T
  Wireless 802.11b/g/n, Wireless Direct Connection
• Operating System Compatibility
  Windows® 11 / Windows® 10 / Windows® 8.1 / Server® 2022
  Mac OS X version 10.11 & up
  Linux4
• Network Protocol
  Print:
      TCP/IP (LPD/Port9100/IPP/IPPS/WSD)

  Management:
      SNMPv1, SNMPv3 (IPv4, IPv6)

  Security: TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
  Security (wireless):
  Infrastructure Mode:
  WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
  Access Point Mode:
  WPA2-PSK (AES)
• Software and Printer Management
  Remote User Interface (RUI),
  Department ID Management,
  Toner Status Tool,
  iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
  eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.

General Features

• Recommended Monthly Print Volume
  250 - 2,500 pages per month
• Duty Cycle
  Max. 30,000 pages per month
• Processor Speed
  800MHz x 2
• Memory
  1GB
• Control Panel
  5 Line LCD, 3 LED (Job, Error, Energy saver), Buttons, 10-key numeric keypad
• Dimensions with Trays (W x D x H)
  430 mm x 418 mm x 287 mm
• Weight
  Approx. 14.9 kg
• Operating Environment
  Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity 20 to 80% RH (no condensation)
• Power Source
  220-240V (±10%) 50/60Hz (±2Hz)
• Power Consumption
  Maximum: Approx. 850W or less
  Active printing: Approx. 390W
  Standby: Approx. 8.5W or less
  Sleep: Approx. 0.8W or less
  Typical Electricity Consumption (TEC): 0.19 kWh/week
  For detailed information relating to Lot26 regulation, please go to:  http://www.canon-europe.com/For_Work/Lot26
• Noise Levels
  Sound power
  Active: 66 dB or less
  Standby: Inaudible

  Sound pressure
  Active: 52 dB or less
  Standby: Inaudible
